The main weapon of the 19th century was the cartridge
A soldier of the Napoleonic Wars and a soldier of the Russo-Japanese War differ more from one another than a soldier of the Russo-Japanese War differs from an infantryman of World War II. Between the first and second centuries, there's a century, between the second and third, almost half a century. But during this first period, the infantry rifle traveled a path that was not repeated in the 20th century, nor yet in the 21st. Usually, when people talk about the revolution in firearms, they think of the bolt, the rifled barrel, or the magazine. Underneath all this lies one thing: a brass tube the length of a pinky finger—the cartridge case of a unitary cartridge.
Muzzle Load: Why is everything stuck at two rounds per minute?
By the early 19th century, infantrymen in almost every European army carried a smoothbore flintlock musket. The caliber was approximately 17–19 millimeters, the bullet was round, and it was muzzle-loaded with a cleaning rod. The effective range was approximately 100 meters for a single target, and up to 200 meters for a dense formation. The practical rate of fire was two to three rounds per minute, and that was only for a trained soldier.
Fritz Neumann. The Battle of Krasnoye (1812)
Weapon This was designed for a volley of close formation fire, not for precise individual fire. The musket's accuracy at a hundred paces left much to be desired: a round bullet flew according to ballistics, which depended on how it fell in the barrel, how it expanded upon firing, and which way it spun upon exiting.
By that time, rifled barrels had been around for over two centuries. Rifled carbine rifles offered accuracy unimaginable to infantry muskets, but they remained the weapon of choice for hunters and gamekeepers. The reason was simple: loading a belted bullet from the muzzle into a rifled barrel, tightly seated in the rifling, took a minute, not ten seconds. An army couldn't fight at such a rapid rate of fire.
It was clear to everyone that rifling provided precision, and that the army needed that precision. It still wouldn't fit into mass-produced weapons: muzzle loading was a hindrance. A purely mechanical solution to this problem, within the logic of a powder flask and ramrod, was impossible. A different ammunition concept was needed.
Breech-loading rifle
In 1812, in Paris, Swiss gunsmith Samuel Johann Pauli (sometimes called Poli in pre-revolutionary Russian literature) patented a breech-loading rifle with a hinged breech. It featured a cartridge in which the bullet, propellant powder, and primer were assembled into a single unit and loaded into the chamber as a single assembly. Interestingly, in the same patent, Pauli also described a flintlock variant of the system, which is often overlooked: the inventor was clearly hedging his bets in case the primer failed to catch on.

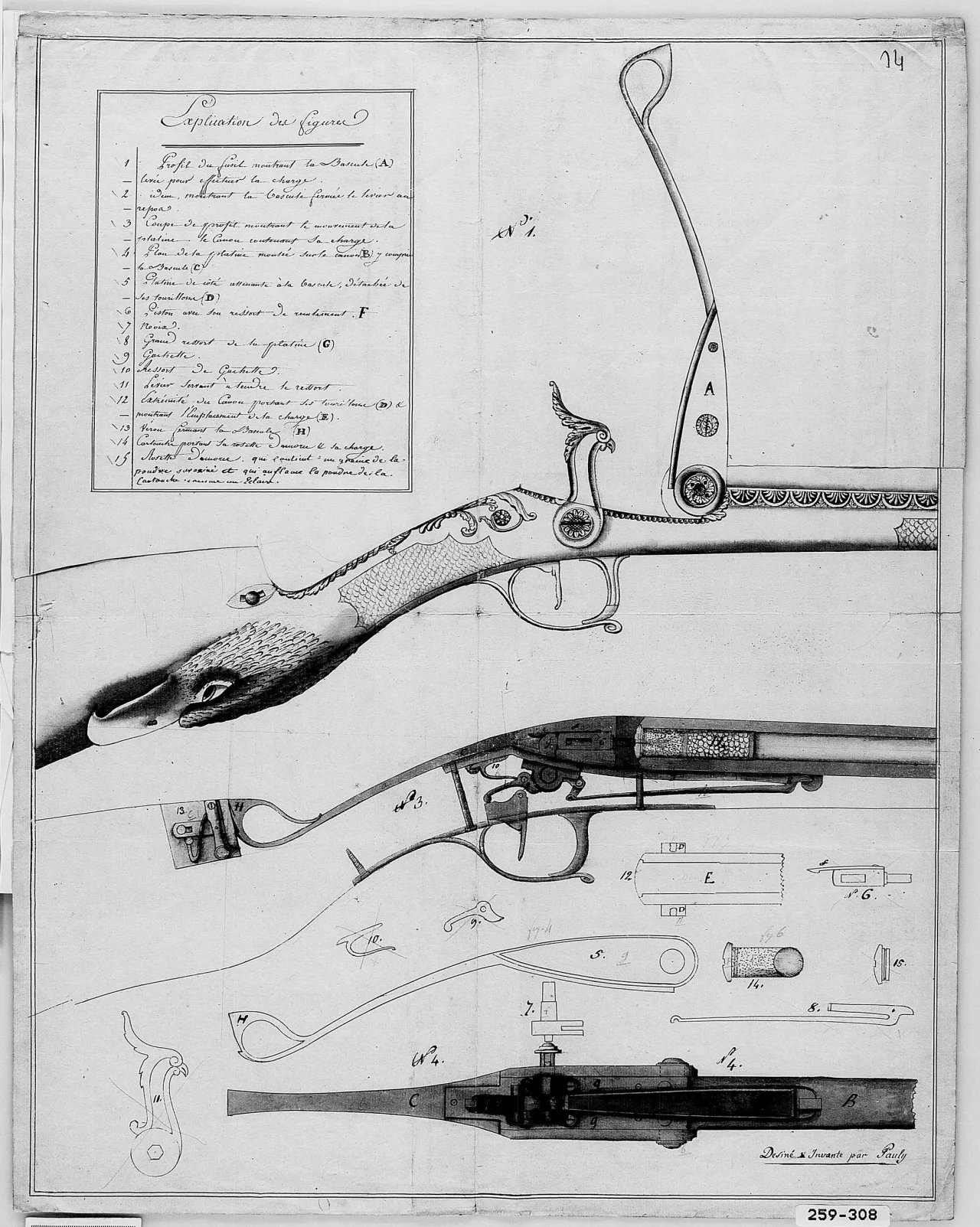

A breech-loading shotgun with self-contained cartridges, created under a French patent received on September 29, 1812 by Samuel Johannes Pauli
The patent didn't yet feature a fully functional metal cartridge case: the cartridge body was paper, and the base containing the igniter remained metal. But the basic design—a single cartridge, breech loading, and obturation in the chamber—was already the same one that would be rebuilt in brass half a century later.
The idea hung in the air. Industry couldn't mass-produce brass of the required quality and precision, percussion cap ignition hadn't been properly perfected yet, and the chemistry of propellants didn't provide consistency from batch to batch. While gunsmiths were designing the cartridge, armies were still lugging around cleaning rods for another forty years. This wasn't due to conservatism, but to the lack of an industrial base for the new concept.
These decades were filled with makeshift solutions. In the 1830s, the percussion cap lock came into use: instead of the unreliable flint, a copper cap with mercury fulminate on a firearm tube. In the 1840s and 50s, the Minié bullet appeared: elongated, with a conical recess in the base, which expanded upon firing and cut into the rifling. Muzzle-loading rifled barrels finally became a standard feature in mass-produced weapons. This was an attempt to pull the old design out by the ears, and it worked only as long as it could: the rate of fire remained at three rounds per minute.
Berner and Whitworth: What a rifle can do without a cartridge
While the cartridge waited for its production, the rifled barrel went its own way and hit the ceiling.

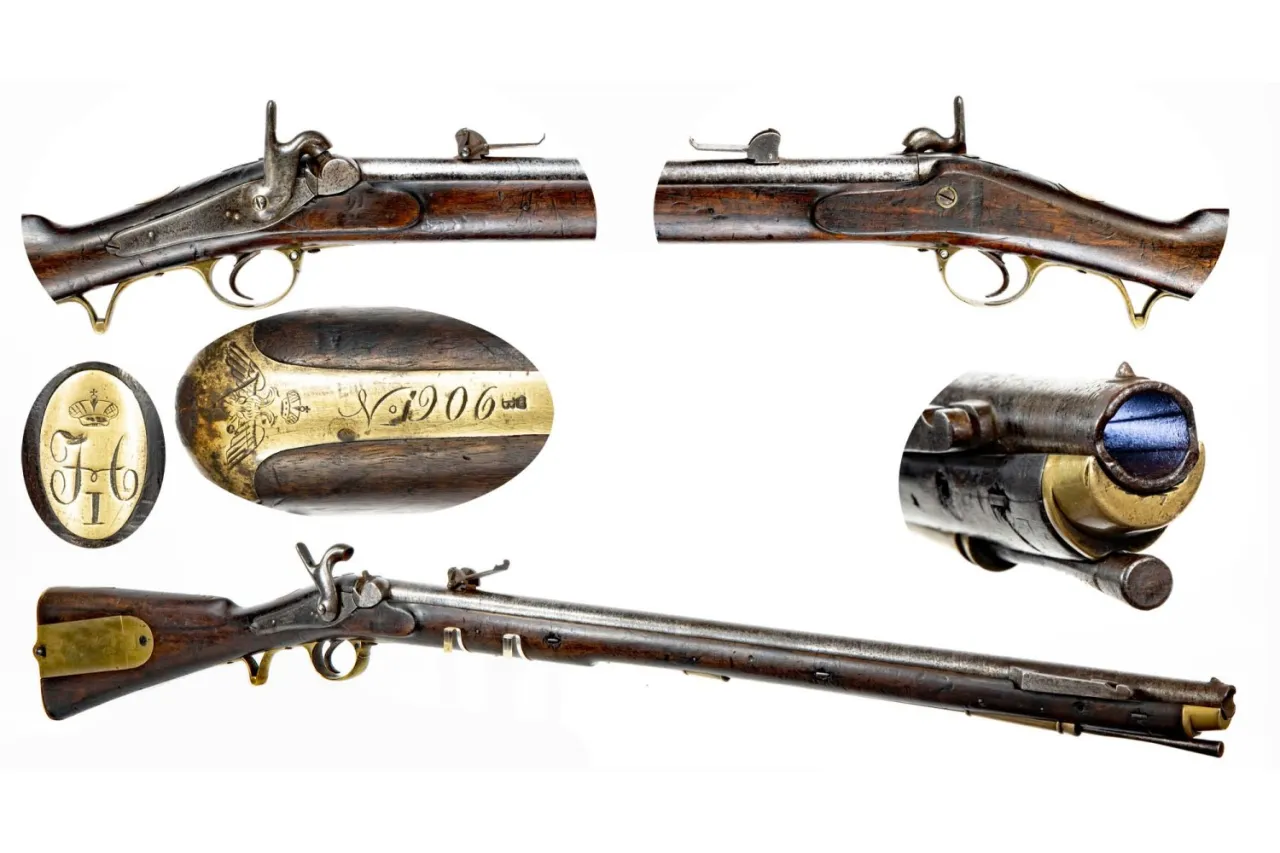

The Russian Model 1843 percussion cap rifle, also known as the "Lüttich rifle," was adopted by the Russian army during the Crimean War and was based on the design of the British Brunswick rifle.
In the 1830s, a double-rifled gun appeared in Braunschweig, which was included in history Under the name Brunswick rifle. Weapons historians still have difficulty identifying its author: Major Berner is most often cited, sometimes the gunsmith Berners, while some theorize a collective decision by the Brunswick commission. The caliber is approximately 17,7 millimeters, with two deep, wide grooves and a bullet with a belt that fits snugly within these grooves. Loading is tolerable, the spin is stable, and accuracy is excellent by the standards of the era. The rifle was manufactured in Liège, served in several armies, and was considered a model weapon of its time.

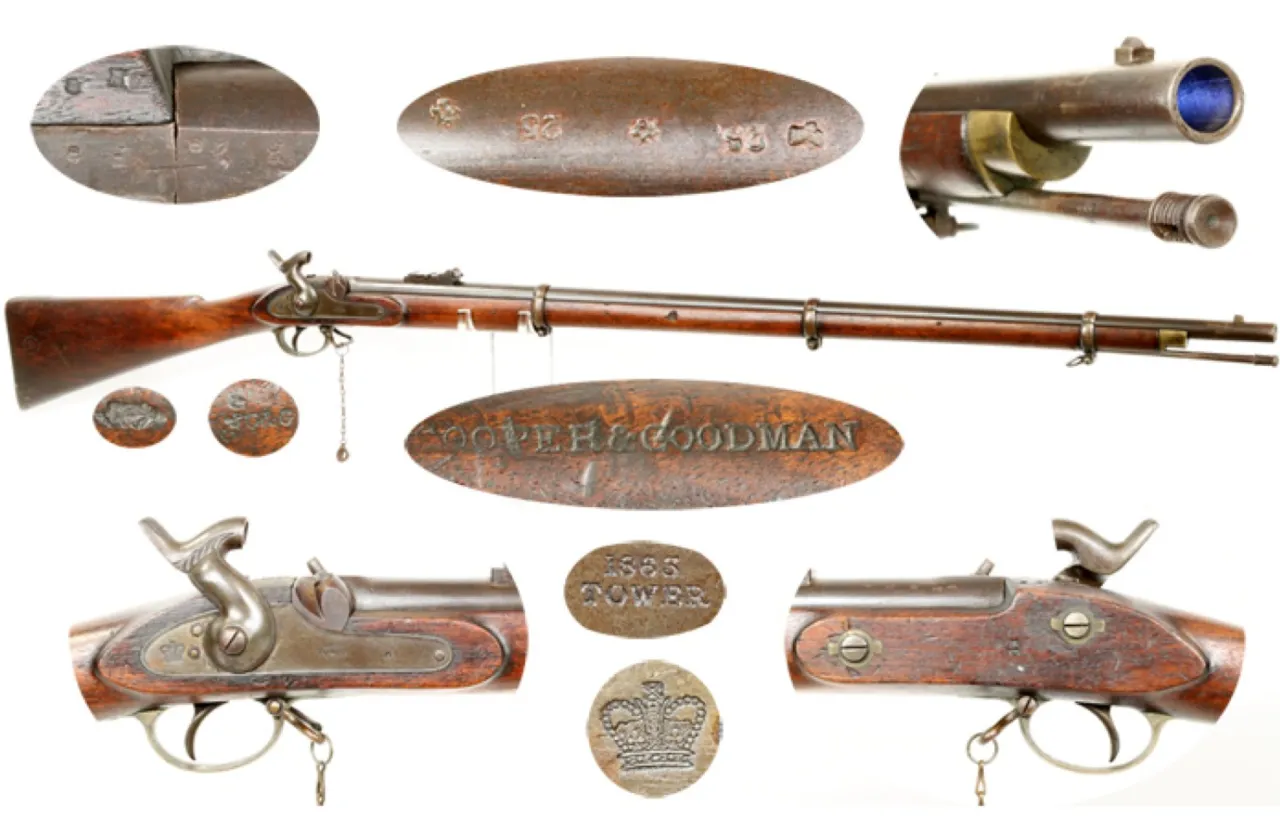

Pattern 1853 Enfield rifle. Whitworth Patent marking: Indicates that the rifle may have used Joseph Whitworth's improved rifling system, which provided superior accuracy.
The Englishman Joseph Whitworth went further and further. In the mid-century, he built a rifle with a hexagonal bore and an elongated bullet shaped like the edges. Strictly speaking, these weren't rifling, but rather a polygonal profile: the bullet didn't penetrate, but glided along the edges, rotating with the profile. At ranges where a standard infantry rifle would lose sight of its target, Whitworth achieved accuracy that was the envy of artillerymen.
It wasn't adopted as a mass-produced weapon for obvious reasons: the expensive barrel, complex bullet, high manufacturing quality requirements, and separate ammunition logistics were all prohibitive for an infantry arsenal. However, the Whitworth rifle found its way into the hands of snipers in the American Civil War, often paired with William Malcolm's five-foot-long brass spotting scope. Precision marksmanship by elite marksmen had existed before then: among jaegers, sharpshooters, and rifle companies in the Napoleonic Wars. But it was in the 1860s, with the Whitworth rifle and Malcolm's scope, that the modern sniper tradition as we know it today took shape.
Both Berner and Whitworth produced delicate, expensive, and precise work. These were two different peaks of what muzzle-loading rifling was capable of. A rifled barrel could no longer advance without a cartridge: what was needed was one that would break through to industrial maturity overseas.
Spencer, Henry, Winchester
Industry caught up with Pauli's idea in the 1860s. Brass had been drawn thinly and uniformly, percussion cap ignition had been refined to acceptable reliability, and gunpowder chemistry had become predictable. The American Civil War (1861–1865) became the first mass testing ground for the metal cartridge, initially a rimfire cartridge.
It's worth breaking down the technical impact of the metal sleeve, because without that, it's impossible to understand why it turned everything upside down so quickly.
- Obturation. The cartridge case walls swell under the pressure of the propellant gases and are pressed tightly against the chamber walls. The gases are prevented from escaping. The breech block ceases to be an engineering headache.
- Powder protection. The case is sealed, moisture and dirt are no longer a problem. Misfires become rare rather than routine.
- Ease of feeding. A loaded cartridge is loaded into the chamber with a single movement, transforming the magazine from a dream into an engineering challenge.
And this task was quickly accomplished. Christopher Spencer's lever-action rifle (with a seven-round tubular magazine in the buttstock) became one of the first mass-produced repeating rifles chambered for the cartridge. An experienced Union cavalryman could fire seven rounds in a matter of seconds; with spare tubes loaded, he could fire up to twenty rounds per minute. After three rounds per minute, it was a different war, and the old-school soldier was unprepared for it.

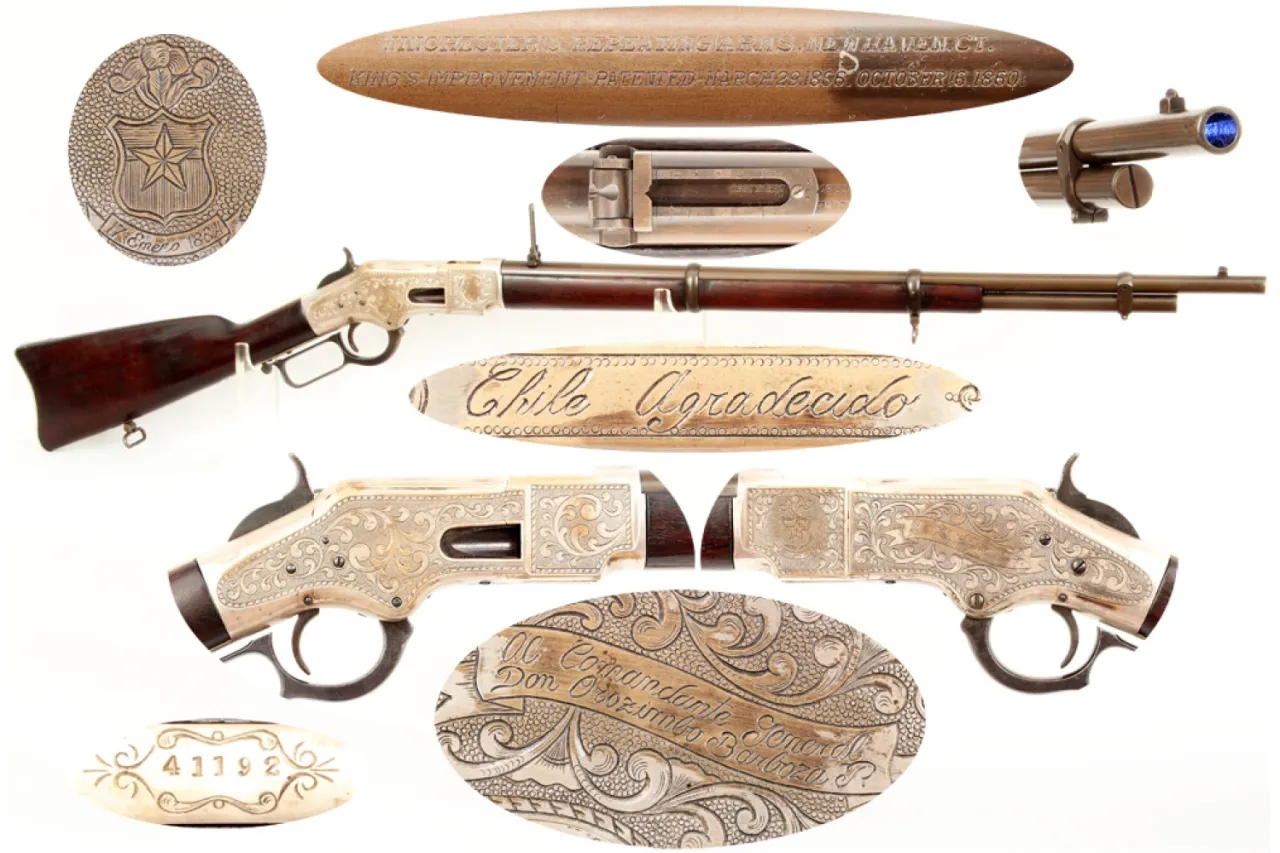

A gift version of the Winchester Model 1866 rifle, also known as the "Yellow Boy" due to its bronze receiver.
The Henry rifle, followed by the Winchester Model 1866, featured a tubular magazine under the barrel, holding fifteen to sixteen .44 rimfire rounds. New Haven Arms' advertising brochures promised a magazine emptying in fifteen seconds. On paper, it was sixty rounds per minute. In practice, this figure deserves the same credibility as any 19th-century advertisement.
None of these systems became military standards in Europe, and they once again ran into the cartridge. Rimfire had a limited pressure, black powder had a limited energy, and the effective range was limited to two to three hundred meters. Perfect for cavalry skirmishes and the Wild West, but not enough for infantry combat at five hundred meters.
Reworks and single-shots: Europe is catching up
European armies entered the era of the metallic cartridge with a different situation. They had hundreds of thousands of recently purchased, well-barreled, percussion-captive muzzle-loading rifles in their warehouses. Throwing away this treasure was unthinkable. So they chose an evolutionary path: remanufacturing.

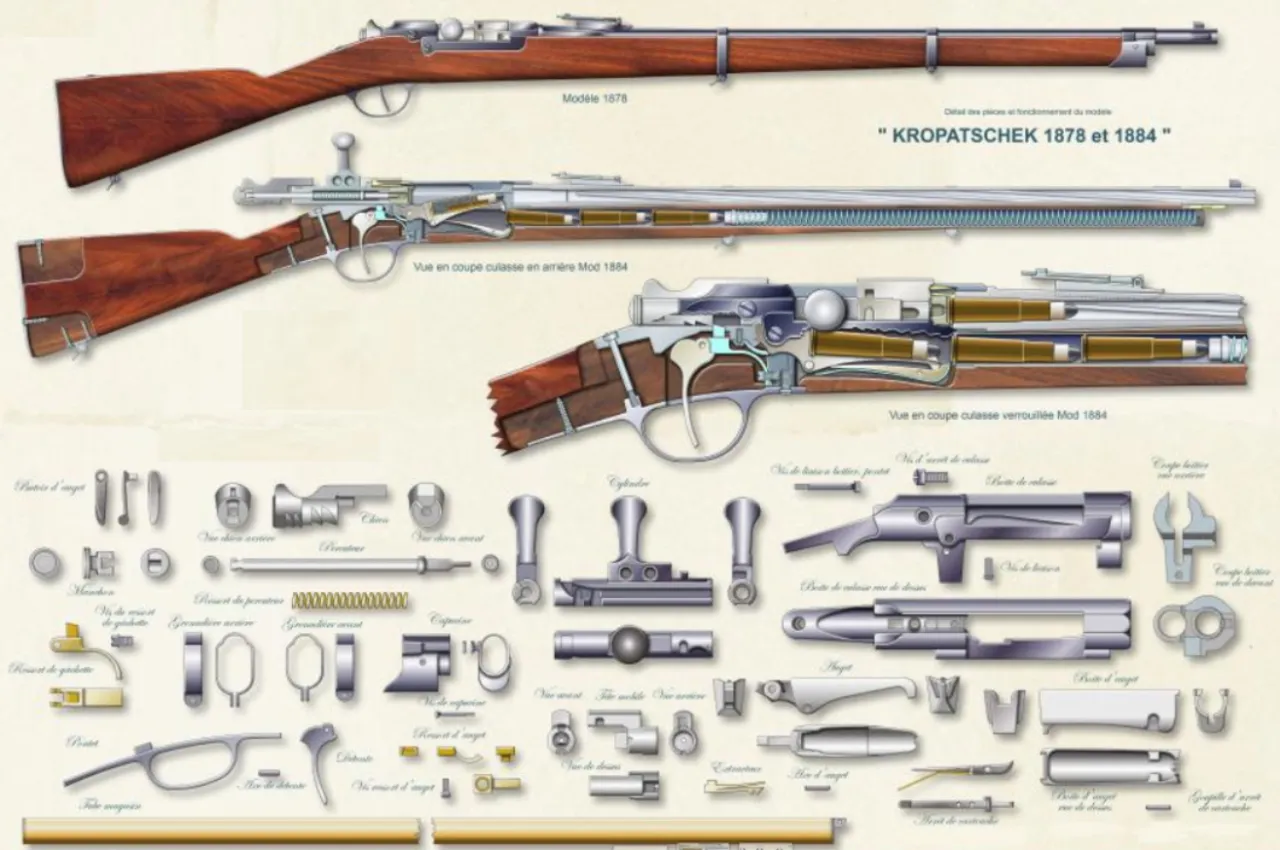

The image shows the technical diagram of the Kropachek rifle of the 1878 and 1884 models, which is in service with the French navy fleetThese rifles were developed from the single-shot Gras rifle of 1874 by adding a magazine system.
After the defeat of 1870, France adopted the Gras rifle of 1874, a thorough redesign of the Chassepot needle-action rifle: the bolt was adapted for centerfire and the chamber was chambered for an 11-mm metallic cartridge. Austria-Hungary followed its own path: the Werndl rifle, a similar caliber (11,15 mm), with an original drum bolt rotating around its longitudinal axis. Germany, England, and Italy each adopted their own variant, but the logic was the same: old barrel, new bolt, new cartridge.

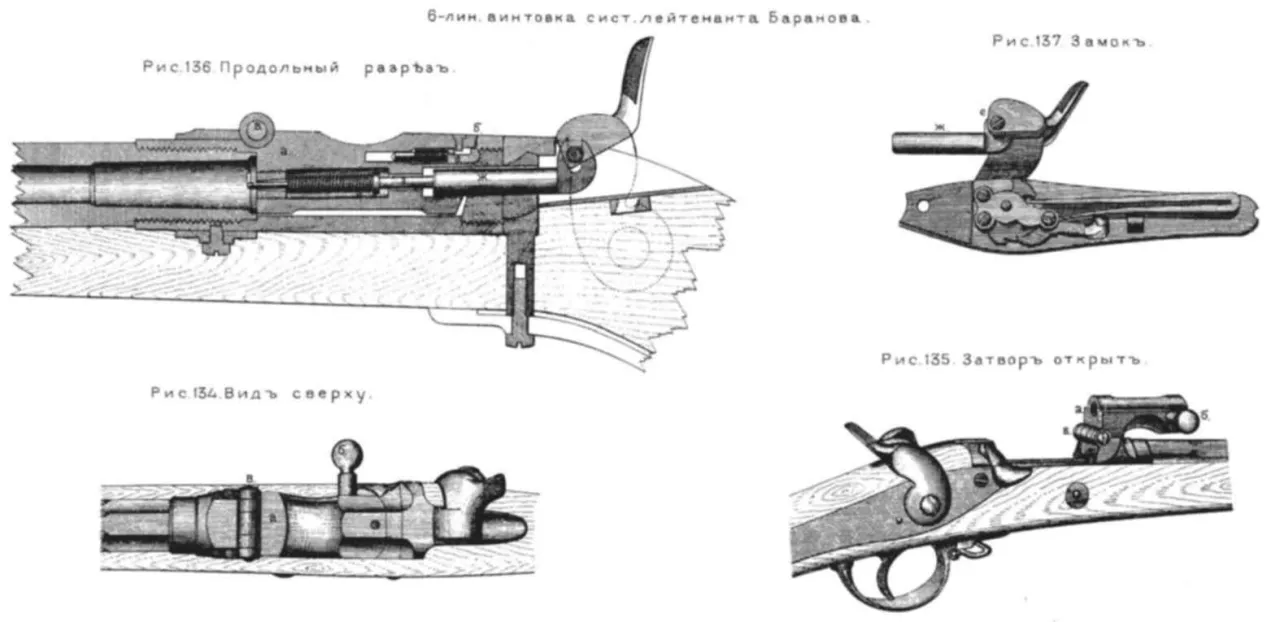

The design of the 6-line rifle of the Lieutenant Baranov system, model 1869. This was one of the systems adopted in the Russian Empire for converting muzzle-loading rifles into breech-loading ones.
In Russia, the cycle continued with the same lag and the same content. In 1869, two redesigned 15,24-millimeter caliber rifles, six lines according to the old Russian standard, were adopted simultaneously. The Baranov rifle was a Russian adaptation of the Albini-Brandlin system. The Krnka rifle was an independent development by an Austrian-Czech gunsmith, converted from old percussion cap rifles. Both were heavy, large-caliber, and used black powder, but both were cartridge-based.

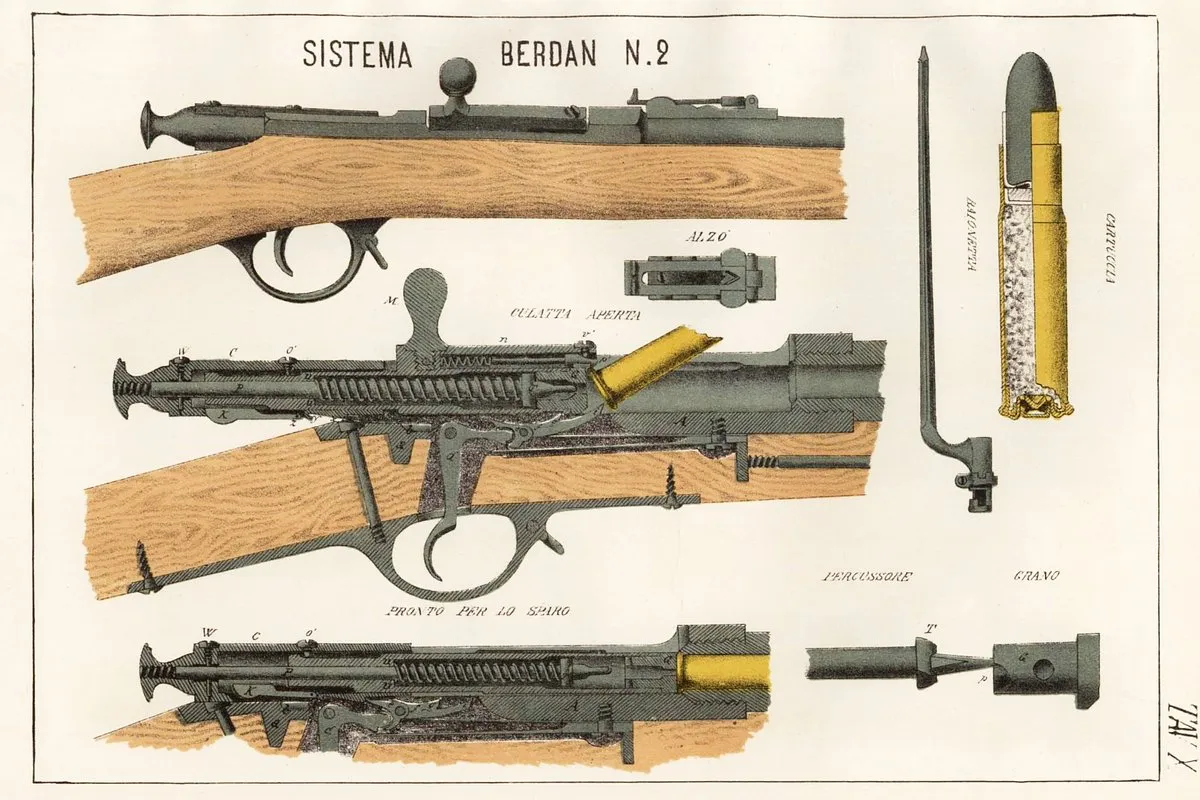

Schematic diagram of the Berdan No. 2 rifle system
Then, American designer Hiram Berdan received a Russian order, and his Model 1870 rifle, colloquially known as the "Berdanka," remained in service for over twenty years. But the rifle's fame came thanks to extensive modernization by Russian officers A.P. Gorlov and K.I. Gunius between 1868 and 1870. They introduced approximately 25 significant changes, including switching to a 4,2-line caliber (10,75 mm), creating a solid-drawn cartridge case, and redesigning the sight. Ultimately, the Berdan No. 2, which was essentially a joint design, was adopted in 1870. Its longevity was due to the simple fact that there was nothing to replace it with. The standard of the mid-1870s (single-shot, large caliber, black powder) was maintained until the early 1890s, because even the neighboring countries had not yet developed a magazine-fed rifle chambered for smokeless cartridges.
1880s: Smokeless Powder

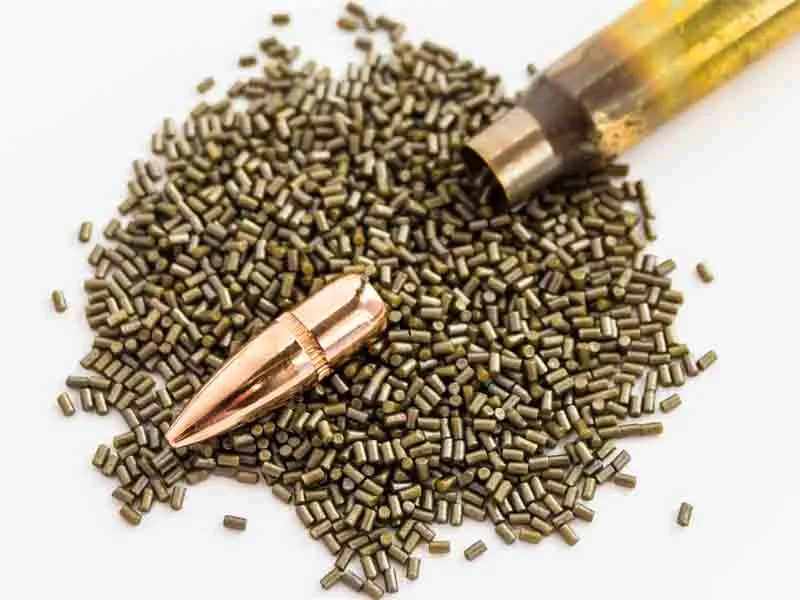

The second breakthrough came from chemistry. In 1884, French engineer Paul Viel developed smokeless powder based on nitrocellulose. Within a few years, such powders were being mass-produced throughout Europe.
Smokeless powder has transformed ballistics. A smaller propellant charge results in higher barrel pressure. When fired, there's virtually no smoke to give away the shooter's presence. The barrel doesn't become coated with carbon deposits after fifty shots. And most importantly, the energy now imparted to the bullet allows for a smaller caliber. From the traditional 11-15 millimeters, it can be reduced to 6,5; 7; 7,62; 8 millimeters. The bullet has become lighter, longer, and faster. Flatness of fire has increased dramatically, as has the effective range. However, a more robust bolt capable of withstanding the increased pressures and revised rifling for the new bullet were required.
The search for a convenient way to chamber five or six such cartridges was ongoing for the entire decade. Austrian designer Ferdinand Mannlicher developed a series of experimental rifles in the early 1880s: with a magazine in the buttstock, with a magazine under the barrel, and with a slanted side magazine. Each design solved one problem but created others: a shift in the center of gravity, a vulnerable stock, and a skewed feed.
Ultimately, Mannlicher arrived at a design that became the standard for the next half-century. A central box magazine under the receiver, with a double-row arrangement of cartridges. Loading from above was done using a stack of cartridges, a clip in which the cartridges were tightly packed and fed into the magazine with a single flick of the thumb. This solved everything at once: compactness, feeding speed, and ease of manufacture. The Mannlicher rifle of 1895 was lighter and more compact than many of its contemporaries precisely because of this design.

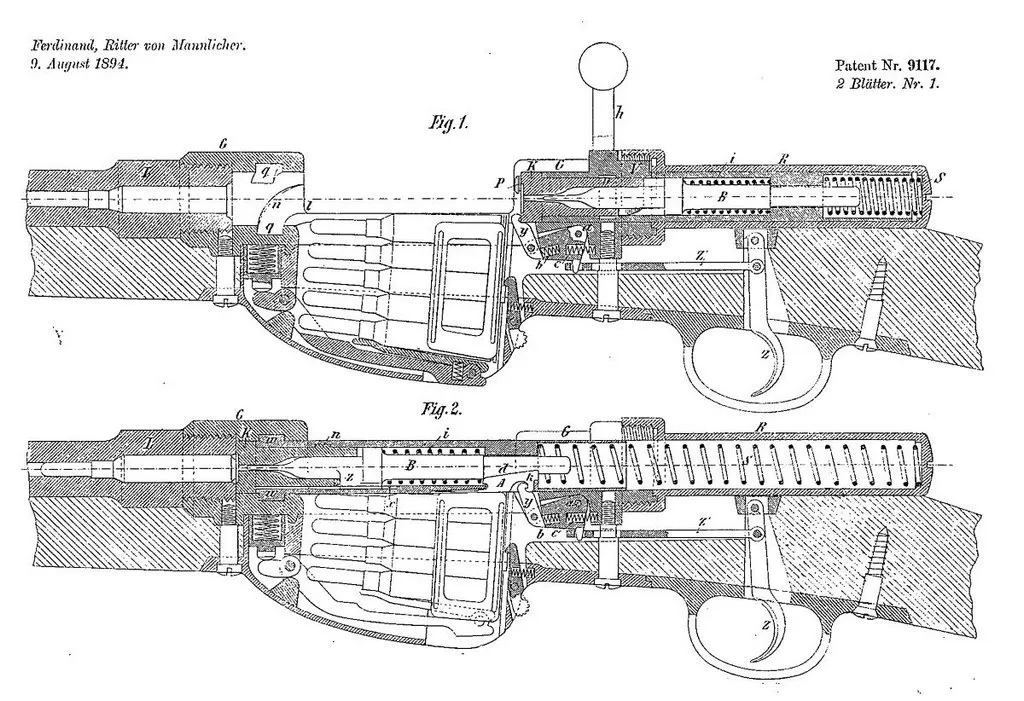

The operating principle of the Ferdinand Mannlicher automatic rifle, model 1894
By the end of the decade, it was becoming clear that rifles were designed around the cartridge, not the other way around. The length and shape of the cartridge case determined how five cartridges would stack in the magazine; the pressure determined the geometry of the bolt's lugs; the light, pointed bullet determined the rifling pitch. The designer started with the case and the bullet; everything else followed.

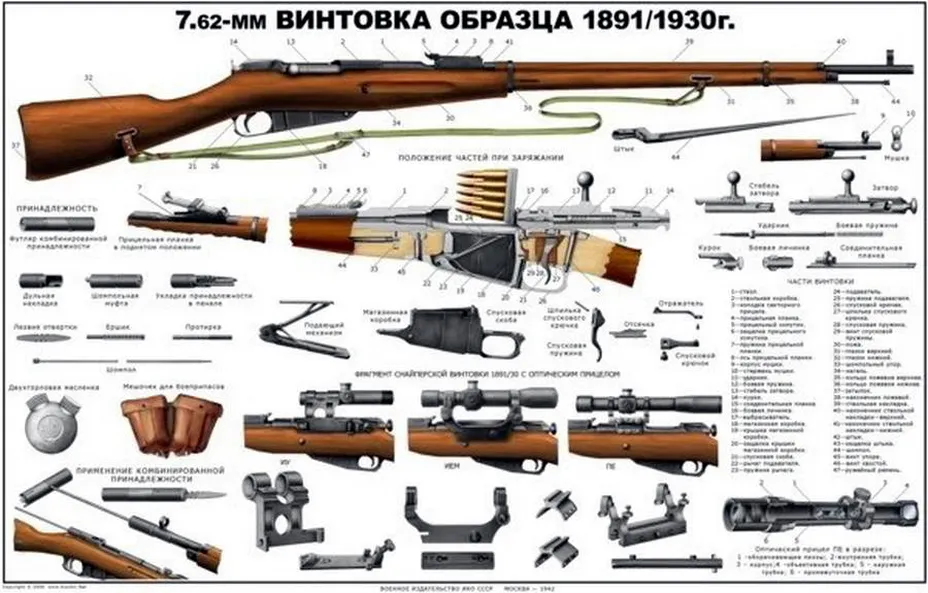

Competition of 1889–1891 and the three-line rifle
By the late 1880s, the Russian military faced a challenge familiar throughout Europe: replacing the Berdan rifle with a small-caliber magazine-fed rifle using smokeless powder. The competition lasted several years, with many contenders, including Sergei Ivanovich Mosin and the Belgian Léon Nagant. The decision, made in 1891, proved a compromise: the bolt and some components were from the Mosin, and the magazine from the Nagant. The three-line rifle, Model 1891, was adopted.
If you take it apart, you'll see how different branches of the century converged in a single product. The rotating bolt action is a pan-European design, honed in Germany, Austria, and Belgium. The central, one-piece, five-round magazine with top-loading clips is a reimagined Mannlicher idea. The 7,62-millimeter caliber, chambered for smokeless powder, is a result of the chemical revolution of the 1880s. The rifled barrel with a carefully selected pitch is a lineage that runs from Berner through Minié to the end of the century.
The "three-line" rifle wasn't the pinnacle of engineering in its day. The German Gewehr 88 was adopted three years earlier. The Austrian Mannlicher of 1895 had a faster magazine mechanism and straight-pull bolt. Mosin had a different set of priorities: the rifle was designed to be inexpensively manufactured in the millions and serviced by a soldier with a third-grade education. A robust receiver and bolt, easy disassembly without tools, and resistance to dirt—it had it all.
The decision proved successful. The three-line rifle survived two world wars, four political regimes, and is still used on the civilian market. But it works because it's chambered for the 7,62×54R cartridge, the same one adopted in 1891 along with the rifle. This cartridge survived into the 2020s in machine guns and sniper rifles. Longer than most countries that adopted it.
Heritage
If you look at what remains of the century's engineering legacy, the picture is simple. The bolt-action mechanism and central box magazine have survived to this day without fundamental changes. Clip loading in self-loading rifles gave way to detachable magazines, but it remains in use in bolt-action rifles. Since then, the chemistry of smokeless powder has been rewritten five times, but the basic principles remain the same.
Soldiers of the First World War with Mosin rifles
Of the major decisions of the century, the only one that survived the entire 20th century without replacement was the unitary cartridge itself: the cartridge case, primer, charge, and bullet, assembled into a single part that the soldier holds in his hand.
No one has seriously moved the cartridge case yet: over the past hundred and fifty years, machine tools, warehouses, storage standards, and calculation skills have adapted to it, and this inertia is heavier than any engineering idea. When metallurgists finally achieve what the designers are waiting for, they'll drag out a thirty-year-old blueprint and begin rearming. There's almost nothing you can do about the bolt and sight.
