M113 in Ukrainian is the Skif armored personnel carrier.

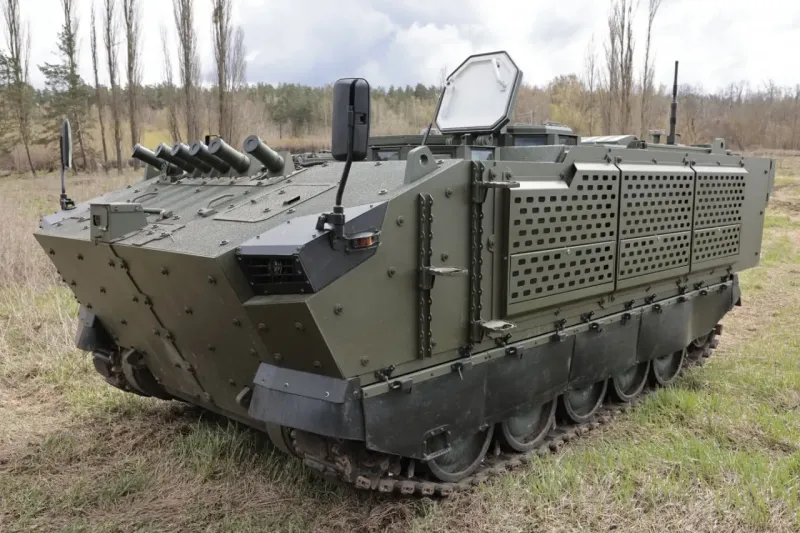

An experimental Skif at the testing ground

Despite all the limitations and problems, Ukraine is trying to develop and produce armored vehicles. One Ukrainian company has unveiled a prototype of the new "Skif" armored personnel carrier. It was designed with reference to foreign models of its class and taking into account operational experience with similar vehicles. At the same time, certain advantages over foreign armored personnel carriers have been achieved.

Caterpillar direction

On April 20, the first information about a new development—the Skif tracked armored personnel carrier—appeared on Ukrainian websites. Key project details were published, along with photographs and videos of the prototype being demonstrated.

The new armored vehicle was developed by UkrArmoTech. Recently, the Ukrainian Ministry of Defense commissioned the company to develop a new tracked armored personnel carrier.

Ukrainian armed forces continue to have a high demand for armored infantry vehicles. However, armored cars and other wheeled vehicles do not always provide the required mobility. This prompted the proposal to develop a new tracked armored personnel carrier (APC) with all the necessary capabilities.

Despite its lack of experience in tracked armored vehicles, UkrArmoTech took on the job. There was no official explanation as to why the military department chose this particular contractor.

Nevertheless, the company developed the Skif project and has already built a prototype armored personnel carrier. It is currently undergoing field testing. The customers and developers have deemed it possible to show the vehicle to the public, but no details regarding the testing phase have been released.

Testing and production preparations are planned for the future. The developer hopes to begin supplying the equipment to combat units. Potential order volumes have not yet been announced.

Concept and Components

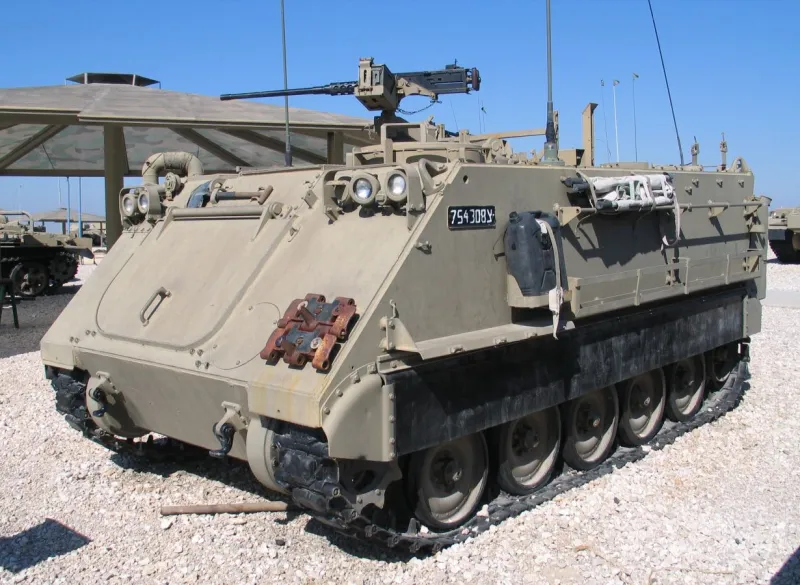

The new Ukrainian armored vehicle easily resembles the American M113 armored personnel carrier and vehicles based on it. This similarity is understandable.

Previously, the US and other countries donated several hundred M113 armored personnel carriers and vehicles of this family to Ukraine. Ukrainian units used them in combat and were generally satisfied. When the need arose for their own armored personnel carrier, they developed one based on this experience.

The Skif borrows more than just its basic concepts and design from foreign technology. Its design makes extensive use of imported components—currently, around 60%, including critical ones. Localization of production is expected to increase in the future.

Technical features

The Skif APC has a welded, box-shaped armored hull with a sloped frontal armor. The base version is made of aluminum alloy. A steel version is also available, which is easier to manufacture but heavier. Depending on the hull and configuration, the combat weight of the vehicle can reach 15 tons.

The hull has differentiated armor and protects the crew from various threats:

• frontal projection - level 4 according to STANAG 4569 standard (14,5 mm bullets);

• side and stern - level 3 (7,62 mm rifle armor-piercing bullets);

• Mine protection - level 3 (6 kg of TNT under the track or bottom).


In the future, the Skif will receive screens or a "visor" for additional protection, as well as UAV detection and suppression systems. The specific components of these systems have not yet been disclosed.

The Skif's layout is similar to the M113 and its derivatives. The engine and transmission compartment is located in the front of the hull. The remaining volume is occupied by a single habitable compartment: the crew compartment is located directly behind the engine compartment, while the troops are accommodated in the center and rear.

The APC can be equipped with diesel engines producing at least 350–360 hp. The transmission type and model are not disclosed. The tracked drive unit has a front drive sprocket and five road wheels per side.

The Skif has a crew of three: a driver, a commander, and a gunner. The driver and commander are located behind the engine compartment on the left side, each with their own hatch in the roof. The gunner is located in the troop compartment.

The troop compartment accommodates eight soldiers. Seats are mounted along the sides of the hull. Disembarkation is via a lowerable rear ramp with a backup door in case of malfunction.

The prototype is currently unarmed—only smoke grenade launchers are mounted on the front of the hull. The roof is designed for a remote-controlled weapon station. Various stations with machine guns up to 14,5 mm in caliber can be installed; one of these is shown in promotional graphics.

The composition of the onboard electronics—communications, fire control system, battlefield management system—has not yet been disclosed by the developers.

Plans and reality

In the future, UkrArmoTech may launch mass production of the Skif and begin delivering them to the military. However, implementing these plans is fraught with a number of challenges.

For decades, the Ukrainian defense industry suffered from the same problem: the state customer lacked sufficient funds to purchase the required amount of equipment. Now the situation has changed—last year alone, UkrArmoTech delivered approximately 400 armored vehicles of its own production to the military department. This demonstrates the continued production potential and the availability of customer funding.

With the appropriate contracts in place, production of Skifs is entirely feasible. However, there are limitations here too. Specifically, Ukraine is not yet capable of mass-producing aluminum armored hulls, meaning production vehicles will have to be built from steel—with a corresponding increase in weight.

Combat equipment option

The Skif is based on a proven concept: taking existing architectural solutions and adapting them to modern requirements. This has improved a number of characteristics compared to the outdated M113, but the vehicle doesn't offer any radical advantages and retains the typical vulnerabilities of its class.

First of all, the armor. Ballistic and mine protection are enhanced compared to the American model, but the Skif is still vulnerable to anti-tank weapons. weapons and attack UAVs. How this problem will be solved is still unclear.

In other respects—mobility, armament, and capacity—the new Ukrainian armored personnel carrier is virtually indistinguishable from its peers. The only significant difference is the ability to be produced independently.

Thus, the Skif is capable of partially meeting the demand for tracked armored vehicles for infantry. However, the actual scale of production remains questionable, and high combat losses will inevitably reduce the already modest practical impact of the new vehicle.
